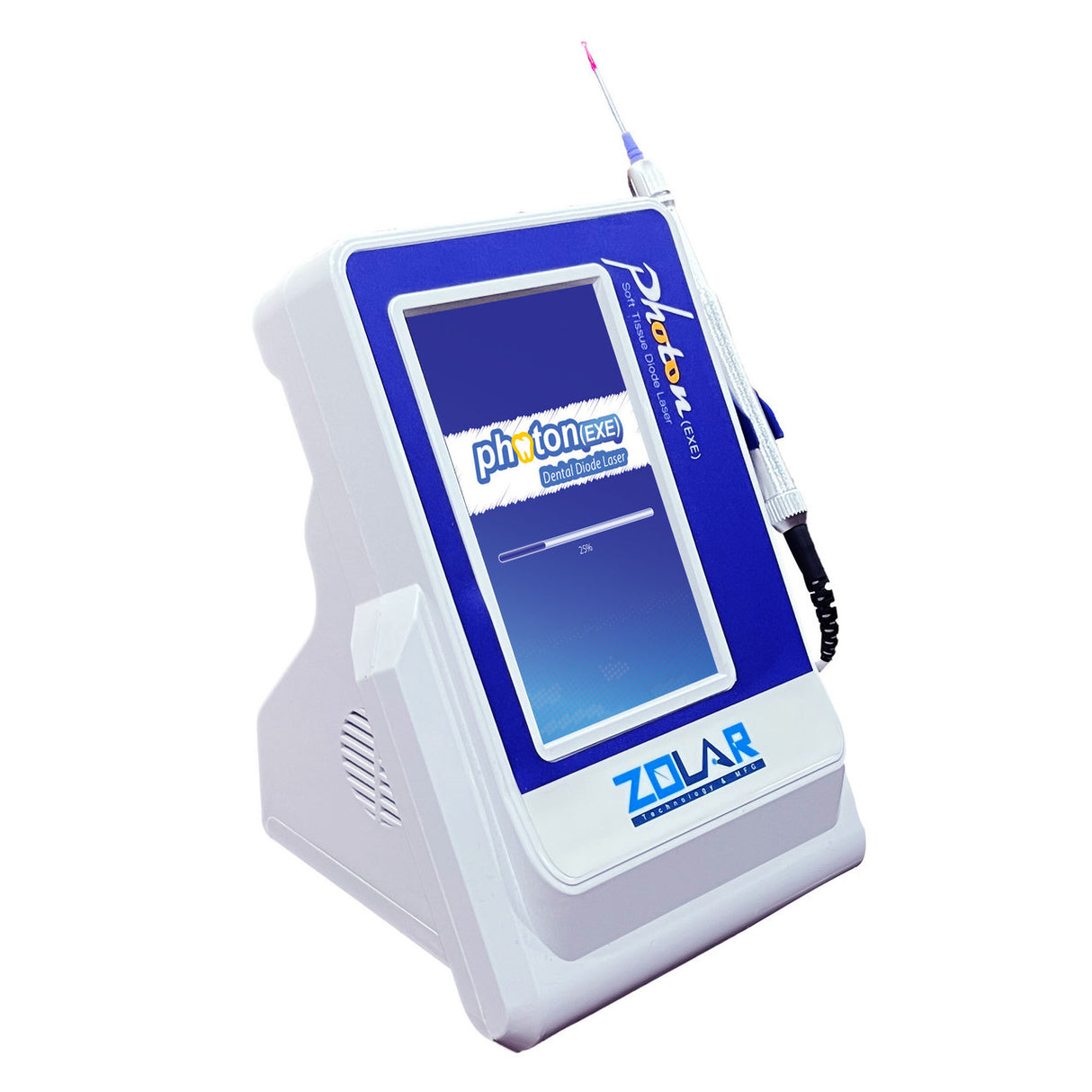

Zolar Photon EXE Dental Diode Laser

The Zolar Photon EXE Dental Diode Laser combines the precision of 810nm technology with advanced features such as an upgraded LBR timer and over 30 additional presets. With an interactive user interface, expansive LCD display, and improved battery performance, it provides highly accurate and efficient dental procedures for professionals.

The “Photon EXE” Diode Laser is a surgical device at the cutting edge of technology, designed for a wide variety of oral soft tissue procedures. It utilizes a solid-state diode as laser energy source. The energy is delivered to the operating area by means of a delivery system consisting of a flexible fiber connecting the laser source and the handpiece. The device is activated by means of a footswitch. This high-performance device is classified as Class 4 and operates at a wavelength of 810nm, delivering an output power of 3W. Its robust capabilities make it an ideal tool for a diverse range of surgical and Low-Level Laser Therapy (LLLT) applications.

In surgical procedures, a 3-watt laser operating at 810nm proves invaluable for tasks necessitating exact tissue cutting or coagulation. This specific wavelength ensures pinpoint accuracy in tissue targeting while mitigating potential damage to adjacent areas.

Low-Level Laser Therapy (LLLT), alternatively recognized as photo biomodulation, employs lower-intensity lasers to invigorate cellular functions. This stimulation fosters tissue healing, diminishes inflammation, and mitigates discomfort.

Features:

• Power and Wavelength: 3Watt and 810nm.
• Improve Accessibility: High Resolution 5 Inches Large Display
• New Interface: User friendly Interface, shorten the treatment time and faster healing.
• Advance LBR: Activated LBR timer for many dental applications
• Reduced Learning Curve: Less extensive Training
• Enhanced Battery Performance: Portable device can be used for longer period.
• Additional Presets: 30 more presets
• Precise and Accurate: Allow for precise tissue targeting, minimizing damage to surrounding areas.
• Reduced Risk of Infection: The high-energy beam sterilizes the area as it works, reducing the risk of post-operative infections.
• Preservation of Healthy Tissue: Remove diseased tissue and preserve healthy tissue.

• Improved Precision for Complex Procedures: Improve control for intricate surgeries.

Applications of Photon EXE Dental Diode Laser Aesthetics & Surgery:

• Exposure of Unerupted Teeth
• Fibroma Removal
• Gingival Toughing
• Crown Impressions
• Genioplasty
• Gingival Incision
• Implant Recovery
• Incision and Drainage of Abscess
• Operculectomy
• Reduction Gingival Hypertrophy
• Soft tissue Crown Lengthening
• Gingival Bleeding Index
• Excisional in Incisional Biopsies
• Vestibulopathy
• Leukoplakia
• Oral Papillectomies
• Crown Lengthening
• Implant Recovery
• Haptic Ulcer Treatment

• Fibroma Removal and more..

Technical Information:

• Dimension: 187(L) × 148(W) × 138(H) mm
• Laser Type: Diode 810nm
• Safety classes: 4 class of laser I type B class of electrical safety
• Display: 5 inches Large Display
• Power Range: 100mW to 3W
• Operation mode: Continuous or Pulsed
• Pulse duration: Start from 0.01ms to 9.9s
• Pulse frequency: Regulated from 1 Hz to 5000Hz
• Duty Cycle: Adjustable
• Aiming Beam: 650nm 2mW
• Audible Notification: Yes
• Visual Notification: Yes
• Power Requirements: AC100-240V 50/60Hz
• Battery: Rechargeable lithium polymer 2.6AH, 16.8V
• Wireless Foot Pedal:   Frequency: 2.4 GHz
• NOHD: 2.0 meters from the distal end of the fiber

• Warranty: 2 Years
